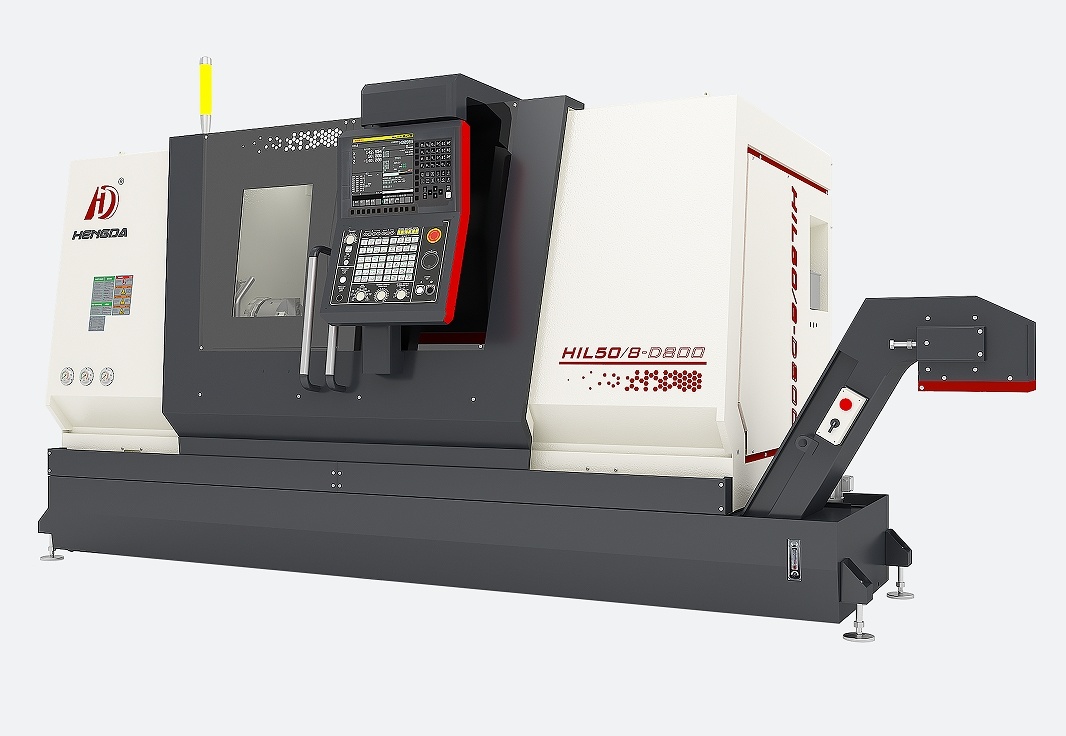

HIL50-800 Series
CNC lathe is one of the widely used CNC machine tools. It is mainly used for cutting the inner and outer cylindrical surfaces of shaft or disc parts, inner and outer conical surfaces with arbitrary cone angles, complex rotating inner and outer surfaces, cylindrical and conical threads, and can perform groove cutting, drilling, expanding, reaming, and boring.
Keyword：
Models for China Market
Slant Bed CNC Turning Center
CNC Turn Mill
Details
Product characteristics
● 45° overall tilt bed design, high rigidity, more smooth chip removal.
● Finite element structure analysis, casting bar layout is reasonable, good force effect.
● The X/Y/Z/A shaft screw is pre-drawn structure, which can reduce the influence of temperature rise on the screw accuracy during processing. The oil seal is added to the screw bearing protection at both sides of the screw, and the ball screw is silent.
● The tail frame adopts V-shaped guide rail, heavy load rigidity, upper and lower layered structure, there is a micro adjustment device between the upper and lower layers, which is convenient for the tail frame center rotation center along the X axis direction, and the standard live center structure tail frame;
● HENGDA self-designed integrated permanent magnet synchronous Spindle Box, low noise, high precision, long life, high finish, constant torque output, high C-axis positioning accuracy.
● A wide range of options: such as feeder, feeder, large hollow chuck, large spindle through hole, tool set, programmable tail seat, the second spindle can be high-speed docking, automatic truss machine entry.
● The machine adopts modular design, with different customer product requirements, select different functional equipment, can quickly realize the automation device to meet the needs of customers.

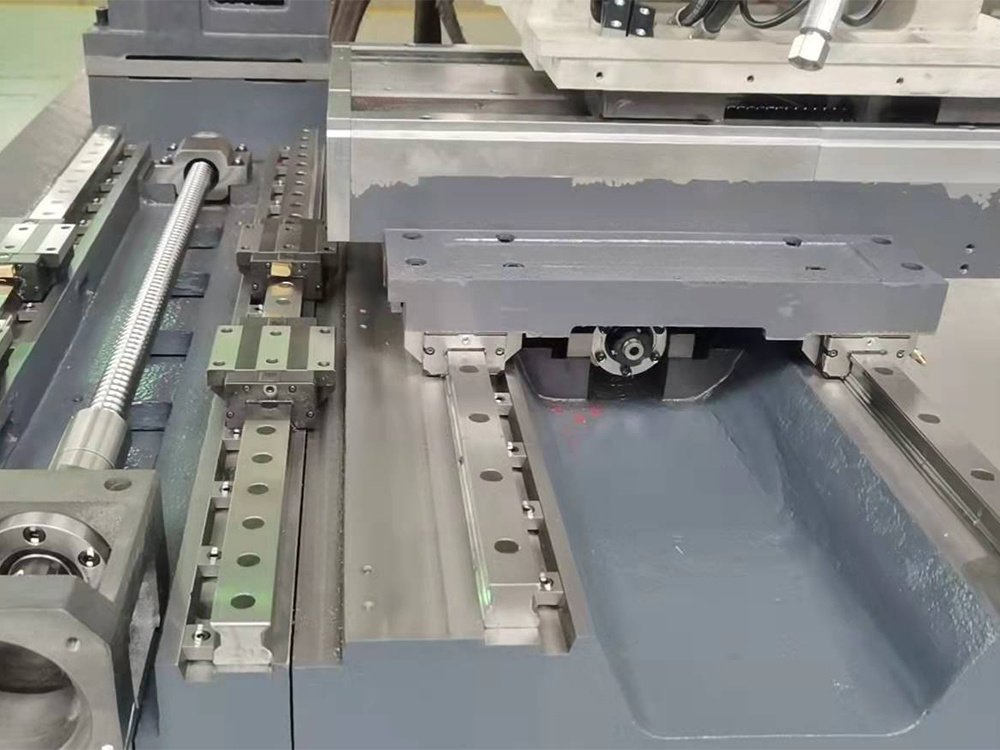

Rolling guide
High precision linear rolling guide, improve the moving speed, greatly reduce the non-cutting time. Imported ball guide rail, high positioning accuracy, less wear, can maintain accuracy for a long time, fully improve productivity, to ensure its processing stability.

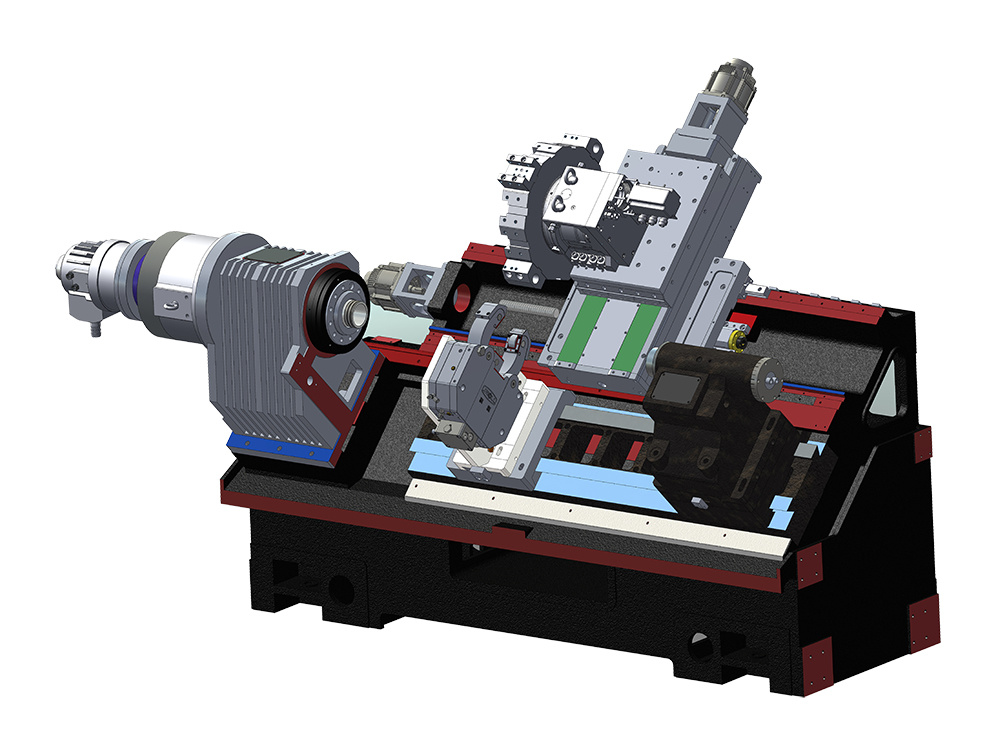

45° overall tilt bed design
High-speed quiet ball screw, improve machine accuracy, ensure its processing stability, high positioning accuracy, less wear can maintain accuracy for a long time.
Spindle power torque diagram
Tool interferogram

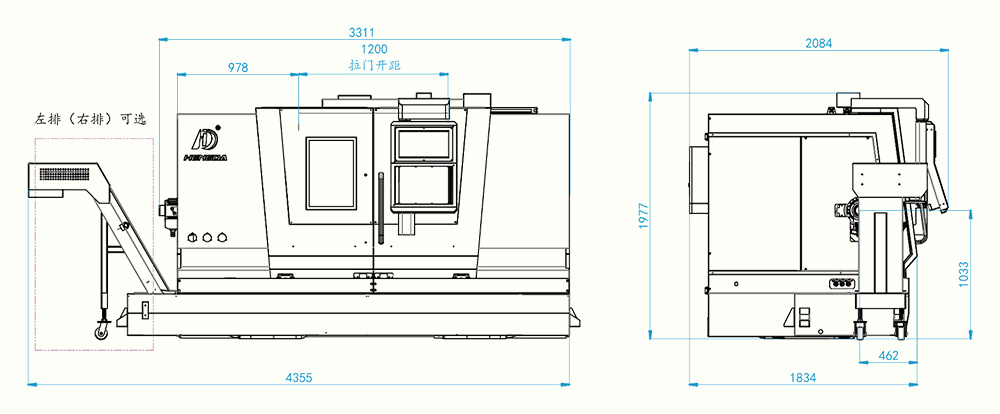

Outline dimensional drawing
| Items | Unit | HIL50/6-T800 | HIL50/6S-T800 | HIL50/6-D800 | HIL50/6S-D800 | HIL50/6-Y800 | HIL50/6S-Y800 | HIL50/6-D800P | HIL50/6-T800P | HIL50/6-Y800P | ||
| Processing Range |
Max.Swing dia.on Bed | mm | 570 | 570 | 570 | 620 | 620 | 620 | 570 | 570 | 620 | |
| Max.Cutting dia. | mm | 480 | 480 | 398 | 344 | 434 | 344 | 398 | 480 | 434 | ||
| Max.Cutting Length | mm | 800 | 800 | 766 | 764.5 | 764.5 | 764.5 | 766 | 800 | 764.5 | ||
| Max.bar dia.can pass | mm | 52 | 52 | 52 | 52 | 52 | 52 | 52 | 52 | 52 | ||
| Spindle | Max.Spindle Speed | rpm | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
| Spindle Type | ISO | A₂-6 | A₂-6 | A₂-6 | A₂-6 | A₂-6 | A₂-6 | A₂-6 | A₂-6 | A₂-6 | ||
| Spindle Thru-hole dia. | mm | 61 | 61 | 61 | 61 | 61 | 61 | 61 | 61 | 61 | ||
| Spindle Taper | - | Metric 70 | Metric 70 | Metric 70 | Metric 70 | Metric 70 | Metric 70 | Metric 70 | Metric 70 | Metric 70 | ||
| Distance from Spindle center to floor | mm | 1032.5 | 1032.5 | 1032.5 | 1057.5 | 1057.5 | 1057.5 | 1032.5 | 1032.5 | 1067.8 | ||
| Sub-Spindle | Max.Spindle Speed | rpm | / | 2940 | / | 2940 | / | 2940 | / | / | / | |
| Spindle Type | ISO | / | A₂-5 | / | A₂-5 | / | A₂-5 | / | / | / | ||
| Spindle Thru-hole dia. | mm | / | 56 | / | 56 | / | 56 | / | / | / | ||
| Spindle Taper | - | / | MT6 | / | MT6 | / | MT6 | / | / | / | ||
| Hydraulic Tailstock | Tailstock Sleeve travel dia. | mm | 100 | / | 100 | / | 100 | / | / | / | / | |
| Tailstock Sleeve travel | mm | 125 | / | 125 | / | 125 | / | / | / | / | ||
| Tailstock Taper | Morse | 5# | / | 5# | / | 5# | / | / | / | / | ||
| Servo Tailstock | Tailstock Travel | mm | / | / | / | / | / | / | 850 | 850 | 850 | |
| Tailstock Taper | Morse | / | / | / | / | / | / | 5# | 5# | 5# | ||
| XYZA Axis Travel | X/Z Travel | mm | 240/825 | 240/825 | 225/825 | 180/825 | 225/825 | 180/825 | 225/825 | 240/825 | 225/825 | |
| Y/A Travel | mm | / | A850 | / | A850 | Y100 | 100/850 | A850 | A850 | 100/850 | ||
| X/Z Rapid Feedrate | m/min | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 | ||
| Y/A Rapid Feedrate | m/min | / | A30 | / | A30 | Y 15 | 15/30 | A30 | A30 | 15/30 | ||
| Tool Turret |
Tool Positions No. | - | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| Turret Type | ||||||||||||
| Tool holder Size of Cylindrical turning tool | mm | 25x25 | 25x25 | 20x20 | 20x20 | 20x20 | 20x20 | 20x20 | 25x25 | 20x20 | ||
| Tool holder Max.dia. of Boring hole turning tool | mm | 40 | 40 | 32 | 32 | 32 | 32 | 32 | 40 | 32 | ||
| Accuracy | Positioning accuracy | X/Z | mm | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 |
| Y/A | mm | / | A0.006 | / | A0.006 | Y0.008 | 0.008/0.006 | A0.008 | A0.008 | 0.008/0.006 | ||
| Re-Positioning accuracy | X/Z | mm | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | |
| Y/A | mm | / | A0.004 | / | A0.004 | Y0.006 | 0.006/0.004 | A0.006 | A0.006 | 0.006/0.004 | ||
| Total Power Capacity | kVA | 25 | 45 | 30 | 50 | 35 | 60 | 40 | 30 | 40 | ||
| Machine Size(L×W×H) | mm | 4355x2085x1980 | ||||||||||
| Machine Weight | kg | 5300 | 5500 | 5300 | 5500 | 5500 | 5700 | 5300 | 5300 | 5500 | ||
| CNC Controller | - | KND (SYNTEC/GSK/FANUC/SIEMENS Optional) | ||||||||||
| Servo Motor Torque Y | N.m | / | / | / | / | 9.6 | 9.6 | / | / | 9.6 | ||
| Hydraulic Chuck | inch | 8" | ||||||||||
| [Hydraulic Center Support] | mm | Opt. | / | Opt. | / | Opt. | / | / | / | / | ||
| Chip Conveyor | - | Right/Left Side chip removal | ||||||||||
| Item | Unit | HIL50/8-T800 | HIL50/8S-T800 | HIL50/8-D800 | HIL50/8S-D800 | HIL50/8-Y800 | HIL50/8S-Y800 | HIL50/8-D800P | HIL50/8-T800P | HIL50/8-Y800P | ||
| Processing Range |
Max.Swing dia.on Bed | mm | 570 | 570 | 570 | 620 | 620 | 620 | 570 | 570 | 620 | |
| Max.Cutting dia. | mm | 480 | 480 | 398 | 344 | 434 | 344 | 398 | 480 | 434 | ||
| Max.Cutting Length | mm | 785 | 785 | 751 | 749.5 | 749.5 | 749.5 | 751 | 785 | 749.5 | ||
| Max.bar dia.can pass | mm | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | ||
| Spindle | Max.Spindle Speed | rpm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Spindle Type | ISO | A₂-8 | A₂-8 | A₂-8 | A₂-8 | A₂-8 | A₂-8 | A₂-8 | A₂-8 | A₂-8 | ||
| Spindle Thru-hole dia. | mm | 86 | 86 | 86 | 86 | 86 | 86 | 86 | 86 | 86 | ||
| Spindle Taper | - | Metric 90 | Metric 90 | Metric 90 | Metric 90 | Metric 90 | Metric 90 | Metric 90 | Metric 90 | Metric 90 | ||
| Distance from Spindle center to floor | mm | 1032.5 | 1032.5 | 1032.5 | 1057.5 | 1057.5 | 1057.5 | 1032.5 | 1032.5 | 1057.5 | ||
| Sub-Spindle | Max.Spindle Speed | rpm | / | 2940 | / | 2940 | / | 2940 | / | / | / | |
| Spindle Type | ISo | / | A₂-5 | / | A₂-5 | / | A₂-5 | / | / | / | ||
| Spindle Thru-hole dia. | mm | / | 56 | / | 56 | / | 56 | / | / | / | ||
| Spindle Taper | - | / | MT6 | / | MT6 | / | MT6 | / | / | / | ||
| Hydraulic Tailstock | Tailstock Sleeve travel dia. | mm | 100 | / | 100 | / | 100 | / | / | / | / | |
| Tailstock Sleeve travel | mm | 125 | / | 125 | / | 125 | / | / | / | / | ||
| Tailstock Taper | Morse | 5# | / | 5# | / | 5# | / | / | / | / | ||
| Servo Tailstock | Tailstock Travel | mm | / | / | / | / | / | / | 850 | 850 | 850 | |
| Tailstock Taper | Morse | / | / | / | / | / | / | 5# | 5# | 5# | ||
| Travel | X/Z Travel | mm | 240/825 | 240/825 | 225/825 | 180/825 | 225/825 | 180/825 | 225/825 | 240/825 | 225/825 | |
| Y/A Travel | mm | / | A850 | / | A850 | Y100 | 100/850 | A850 | A850 | 100/850 | ||
| X/Z Rapid Feedrate | m/min | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 | 30/30 | ||
| Y/A Rapid Feedrate | m/min | / | A30 | / | A30 | Y 15 | 15/30 | A30 | A30 | 15/30 | ||
| Tool Turret |
Tool Positions No. | - | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| Turret Type | ||||||||||||
| Tool holder Size of Cylindrical turning tool | mm | 25x25 | 25x25 | 20x20 | 20x20 | 20x20 | 20x20 | 20x20 | 25x25 | 20x20 | ||
| Tool holder Max.dia. of Boring hole turning tool | mm | 40 | 40 | 32 | 32 | 32 | 32 | 32 | 40 | 32 | ||
| Accuracy | Positioning accuracy |
X/Z | mm | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 | 0.006 |
| Y/A | mm | / | A0.006 | / | A0.006 | Y0.008 | 0.008/0.006 | A0.008 | A0.008 | 0.008/0.006 | ||
| Re-Positioning accuracy |
X/Z | mm | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | 0.004 | |
| Y/A | mm | / | A0.004 | / | A0.004 | Y0.006 | 0.006/0.004 | A0.006 | A0.006 | 0.006/0.004 | ||
| Total Power Capacity | kVA | 30 | 50 | 35 | 55 | 40 | 65 | 45 | 35 | 45 | ||
| Machine Size(L×W×H) | mm | 4355x2085x1980 | ||||||||||
| Machine Weight | kg | 5400 | 5600 | 5400 | 5600 | 5600 | 5800 | 5400 | 5400 | 5600 | ||
| CNC Controller | - | KND (SYNTEC/GSK/FANUC/SIEMENS Optional) | ||||||||||
| Spindle Motor Torque | N.m | 246 | 246 | 246 | 246 | 246 | 246 | 246 | 246 | 246 | ||
| Hydraulic Chuck | inch | 10" | ||||||||||
| [Hydraulic Center Support] | mm | Opt. | / | Opt. | / | Opt. | / | / | / | / | ||
| Chip Conveyor | - | Right/Left Side chip removal | ||||||||||
Note:
* HIL is model for international market. HL is old model for Chinese Market.
| Model for International Market | HIL50/6-T800 | HIL50/6S-T800 | HIL50/6-D800 | HIL50/6S-D800 | HIL50/6-Y800 | HIL50/6S-Y800 | HIL50/6-D800P | HIL50/6-T800P | HIL50/6-Y800P | ||
| Old Model for Chinese Market | HL256-T800 | HL256S-T800 | HL256-D800 | HL256S-D800 | HL256-Y800 | HL256S-Y800 | HL256-D800Z | HL 256-T800Z | HL 256-Y800Z | ||
| Model for International Market | HIL50/8-T800 | HIL50/8S-T800 | HIL50/8-D800 | HIL50/8S-D800 | HIL50/8-Y800 | HIL50/8S-Y800 | HIL50/8-D800P | HIL50/8-T800P | HIL50/8-Y800P | ||
| Old Model for Chinese Market | HL258-T800 | HL258S-T800 | HL258-D800 | HL258S-D800 | HL258-Y800 | HL258S-Y800 | HL258-D800Z | HL258-T800Z | HL258-Y800Z | ||
CNC lathe is one of the widely used CNC machine tools. It is mainly used for cutting the inner and outer cylindrical surfaces of shaft or disc parts, inner and outer conical surfaces with arbitrary cone angles, complex rotating inner and outer surfaces, cylindrical and conical threads, and can perform groove cutting, drilling, expanding, reaming, and boring.
